PINND – CS2+ pedals

  • Im Angebot
  • Normaler Preis CHF 329.90 inkl. MwSt. zzgl. Versandkosten


PINND CS+ Pedals

Lieferumfang: 1 Paar Pedale inkl. Pins gemäss Auswahl

Verfügbarkeit: schwarz

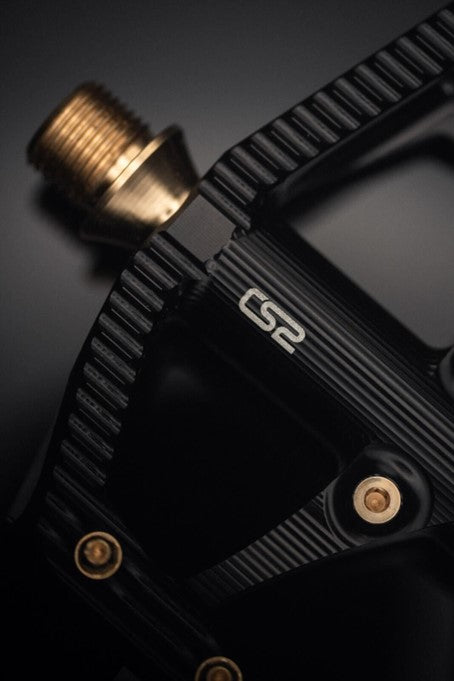

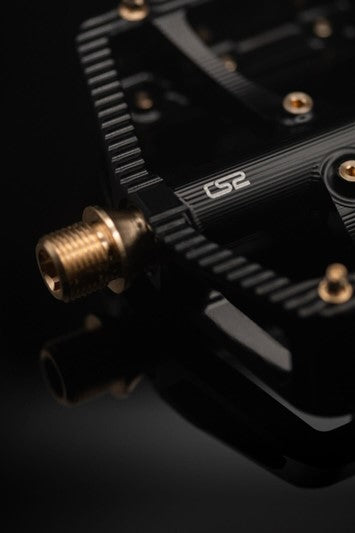

The CS2+ uses beryllium copper spindles for increased strength over the standard CS2.

Using the same oil sealed internals, our bearings run on these stronger spindles inside the heavily machined and optimised 7075 T6 platforms.

- 1 x Needle Bearing and 2 x Cartridge Bearings per pedal

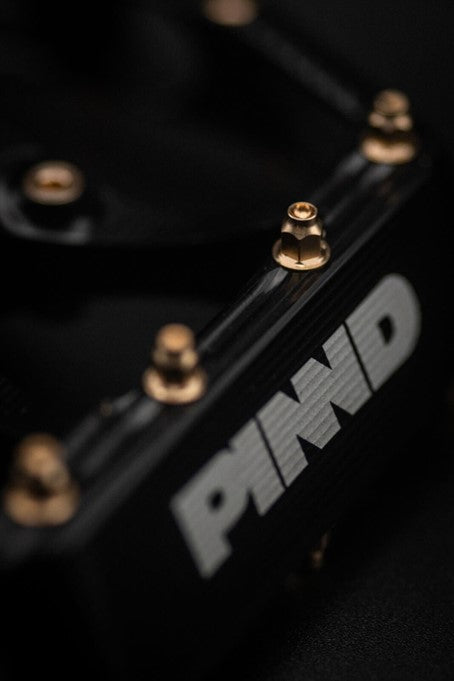

- 13 pins per side for personal customisation

- 5 year warranty (doesn't cover wear and tear)

CS2+ Pedals are made in small batches each month. When they have sold out for a month we recommend you pre-order for the next drop.

Designed for downhill, enduro and trail mountain bike riding and offering a large contact platform with a 9mm concave profile and fully adjustable pin set. Pedals are shipped with 18 pins installed allowing you to customise with an additional 8 provided. The 7075 T6 aluminium body has been CNC machined on our 5-axis tooling allowing us to fully optimise the pedal for a high traction connection between pedal and shoe. By using beryllium copper for the spindles and pins we have achieved what we think may be the strongest pedal available.

Internally the pedal features oil sealed bearings to give exceptional all weather performance and long service intervals. The design incorporates an oil seal which keeps oil in, and water and dirt out. With our use of a needle bearing instead of plastic bush, the CS2+ won't exhibit the axial play common to most designs. When this play develops the seal becomes compromised and unable to seal resulting in water and dirt ingress and lubrication egress - our solution is 2 fold. Quality oil seal and quality needle bearing.

Technische Daten

  • Pedalgewicht (Paar): 408g
  • Grösse: 105 x 105 x 17mm
  • Konkavität: 2mm
  • Gehäusematerial: Magnesium / CNC bearbeitet
  • Achse: 6061 Alu CNC bearbeitet
  • Pedallager: gedichtete Lager / DU-Buchsen
  • Pin: 10 austauschbaren Pins
Pins 26 Per Pedal - Beryllium Copper
Body Material 7075 T6 Anodised Aluminium
Spindle Beryllium Copper
Inner Bearing HK1015 Needle Bearing
Outer Bearing 2 x Cartridge Bearings
Max Rider Weight No limit
Foot Print 110 x 105mm
Warranty 5 Years Limited Warranty - half price crash replacement
Weight (pair) 480g with beryllium copper pins.


  • One size
